MONITORAMENTO DO FLUXO DE SÓLIDOS EM TUBOS FLEXÍVEIS
FlowJam T

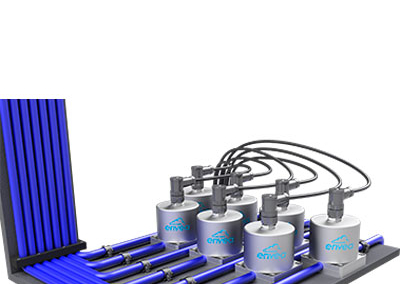

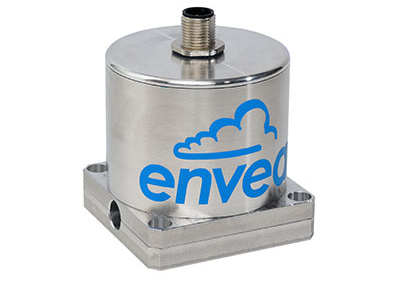

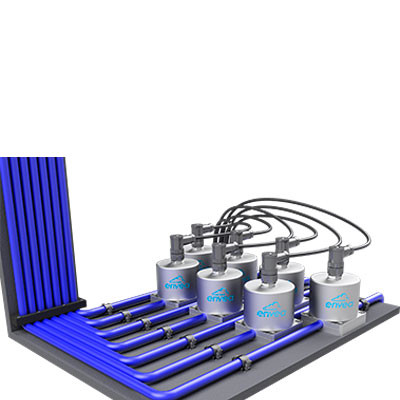

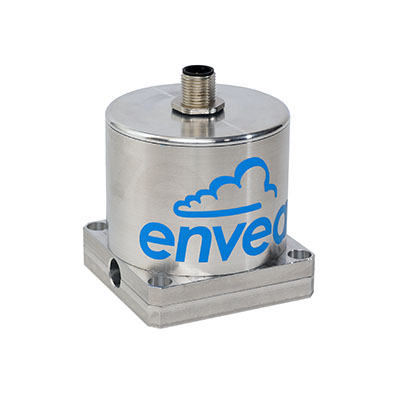

O FlowJam T é um sensor projetado especificamente para monitorar o fluxo de sólidos transportados através de tubos finos.
O sensor pode ser usado para tubos feitos de materiais não condutores de eletricidade, como plástico ou borracha, com diâmetro externo entre 4 e 25 mm.
O sensor é montado ao redor do tubo para fazer medições. Nenhuma parte do sensor está em contato com o material a ser medido, evitando assim o fenômeno de erosão.
Monitoramento do fluxo de material nas mangueiras para pequenas quantidades
- triboelectric measurement
- free cross section
- Plug & Play
- trend monitoring for throughput
- suitable for pipelines with outer diameter: 4 … 25 mm
- compact device
- easy retrofitting

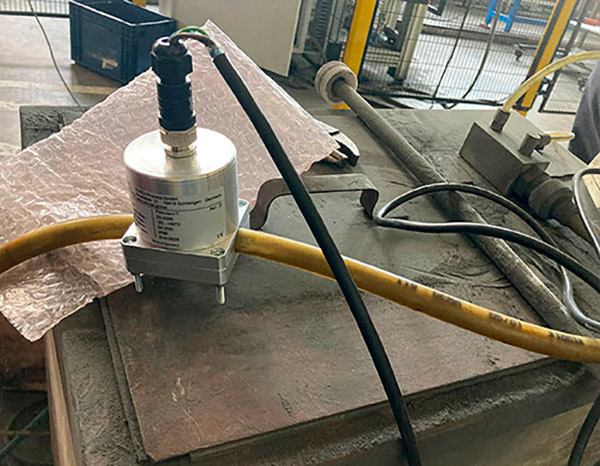

- Powder coating
- Water cutting
- Sand blasting
- 3D printing
| Technical Specifications | |
|---|---|
| Material to detect | Dust, powders or granulates |
| Working principle | Triboelectric |
| Process pressure | Independent |
| Process temperature | -20 … +60 °C |
| Mounting | Clamp-on |
| Type of Conveying | In flexible hoses |
| Flow rates | No limit |
| Pipe diameter/detection range | 4 to 25 mm |
| ATEX rating | No |
| Output | Relay, 4…20mA Trend |
| Sensor Technical Data | |
|---|---|
| Power supply | 24 V DC |
| Connection | M12-Plug |
| Housing material | Aluminium |
| Protection type | IP 64 |
| Process temperature | -20 … +60 °C |
| Ambient temperature | -20 … +60 °C |
| Analogue output | 1 x 4 … 20 mA (0 … 20 mA), load < 500 Ω (Active) |
| Relay output | NO (make contact); max. 250 V AC / 0.5 A; 30 V DC / 1 A |
| Possible outer diameter | 4 to 25 mm |
| Dimensions | Width: 62 mm, Depth: 62 mm, Height: depend on outer diameter Ø (with Ø 8 mm the height is 75 mm) |
The FlowJam T detects all types of solid streams that move through the detection area. The detection is performed regardless of the direction of movement, by the triboelectric discharges of the particles.
The material movement in non-metallic pipelines is displayed at the analogue output as a trend and at the relay output as switching state.
Via the trend output can be displayed, for example, whether more or less material through the tube is conveyed. The material flow can also be observed for uniform distribution. By means of the relay contact an additional information about Flow/NoFlow can be output.
The material movement in non-metallic pipelines is displayed at the analogue output as a trend and at the relay output as switching state.
Via the trend output can be displayed, for example, whether more or less material through the tube is conveyed. The material flow can also be observed for uniform distribution. By means of the relay contact an additional information about Flow/NoFlow can be output.
System:
The FlowJam T is a compact device and is connected via an 8-pin plug. For parameterisation of the sensor, a Modbus-USB converter and software could be provide.
